Last week, on April 20, Microsoft released Cumulative Update 12 for Exchange 2019 and Cumulative Update 23 for Exchange 2016.

It took Microsoft six month for the Cumulative Update, that’s because Microsoft is changing from a quarterly release cycle to a bi-annual release cycle. As a result, this will the Cumulative Update of the first half of 2022, so H1 2022 Cumulative Update.

This is only true for Exchange 2019 as there will be no new Cumulative Updates for Exchange 2016 anymore. Exchange 2016 has entered extended support, so Microsoft will deliver Security Updates when needed, but not more CUs. Mainstream support for Exchange 2019 will end on January 9, 2024 and extended support for Exchange 2019 will end on October 14, 2025. This is the same date as for Exchange 2016. What will happen then is still unknown….

Exchange 2019 CU12 now has support for Windows 2022 (finally). Support for Windows 2022 is only true for Exchange 2019 CU12, Exchange 2016 is only supported on Windows 2016.

When it comes to Active Directory, only Exchange 2019 CU12 supports Windows 2022 Domain Controllers. Exchange 2016 and Exchange 2013 do not support Windows 2022 Domain Controllers (despite earlier communication from Microsoft). For more information regarding supportability check the Exchange Supportability Matrix.

One of the new features of Windows 2022 is support for TLS 1.3 and several of my clients have a requirement for this. Unfortunately, Exchange 2019 still does not support TLS 1.3 and support for TLS 1.3 is expected by the end of this year.

With the new Cumulative Update comes a change in (free) licensing. Previously, there was a free license for the ‘hybrid server’ but this was Exchange 2016. Now with Exchange 2016 in extended support and no more CUs for Exchange 2016, the free hybrid license is available for Exchange 2019!

A lot of noise regarding the “remove the last Exchange server” in your organization. When you have all mailboxes in Exchange Online and you have Azure AD Connect running, you need to have one Exchange server, just for management purposes. This is no longer required with Exchange 2019 CU12. You can install the management tools for CU12 and get rid of the Exchange server. Be aware that you must NOT UNINSTALL the Exchange server, but clean up the hybrid configuration using PowerShell, shutdown the Exchange server and run the CleanupActiveDirectoryEMT.ps1 script (released with Exchange 2019 CU12).

Are there reasons to not do this? Yes, think about SMTP relay from on-premises to Exchange Online, or RBAC on-premises (not available with only the Management Tools on-premises), or maybe an offloading possibility when needed. Oh, and if you are not good with PowerShell, be aware that this is a PowerShell only solution. If you are addicted to the Exchange Admin Center, leave the Exchange server running 😉

But nevertheless, it’s good that Microsoft finally heard this feedback and offers a solution for the last Exchange server when all mailboxes are in Exchange Online.

A couple of remarks:

Be aware that Microsoft only supports the two latest CUs, i.e. Exchange 2019 CU11/CU12 and Exchange 2016 CU22/CU23.
There are no schema changes in these Cumulative Updates, but there are changes in the configuration, so you need to run setup with the /PrepareAD switch.
When running a Database Availability Group, do not forget to put the Exchange servers in maintenance mode.
As always, test the new CUs in your test environment before installing in your production environment.

More information and downloads:

Exchange version	KB Article	Download
Exchange 2019 CU12	KB5011156	https://www.microsoft.com/en-us/download/details.aspx?id=104131
Exchange 2016 CU23	KB5011155	https://www.microsoft.com/en-us/download/details.aspx?id=104132
Exchange 2016 CU23 language packs		https://www.microsoft.com/en-us/download/details.aspx?id=104130

On September 28, 2021 Microsoft released their quarterly updates for Exchange server, Exchange 2019 CU11 and Exchange 2016 CU22. Despite earlier communications a new CU for Exchange 2016 is released as well.

Besides normal fixes, a new feature is introduced in these CUs as well, the Exchange Emergency Mitigation Server or EEMS. EEMS is a new service that can mitigate new security breaches when they arise. EEMS connects to a Microsoft endpoint (https://officeclient.microsoft.com/getexchangemitigations) and when needed, downloads and installs available mitigations. It performs a check once an hour. If you don’t feel comfortable with this, it is possible to disable this on an organization level 😉

Also new in Exchange 2019 CU11 and Exchange 2016 CU22 is telemetry regarding the mitigation service. When configured, it will automatically upload mitigation related service to Microsoft. Again, this can be disabled as well using the license agreement (enabled by default).

When installing this update you will see change in the License Agreement:

The default is I accept the license agreement and will share diagnostics data with Microsoft (recommended), but you can select other as well of course.

When using the unattended install, a new switch is used for accepting the License Agreement.

/IAcceptExchangeServerLicenseTerms_DiagnosticDataON – when you allow to upload diagnostics data to Microsoft
/IAcceptExchangeServerLicenseTerms_DiagnosticDataOFF – when you do not allow to update diagnostics data to Microsoft.

There are also two new prerequisites when installing Exchange 2019 CU11 or Exchange 2016 CU22. Prerequisite software contains now the ‘IIS URL Rewrite Module’ which needs to be installed. The second one is connectivity to the internet for accessing the mitigation service endpoint.

The setup application will check for these prerequisites and will generate an error when they are not met:

Note. The internet connectivity is not shown in this screenshot.

The ‘IIS URL Rewrite Module’ can be downloaded from https://download.microsoft.com/download/1/2/8/128E2E22-C1B9-44A4-BE2A-5859ED1D4592/rewrite_amd64_en-US.msi

Using PowerShell you can download the module, store it in the C:\Install directory and install it unattended using the following commands:

Start-BitsTransfer -Source "https://download.microsoft.com/download/1/2/8/128E2E22-C1B9-44A4-BE2A-5859ED1D4592/rewrite_amd64_en-US.msi" -Destination C:\Install
Start-Process -FilePath "C:\Install\ rewrite_amd64_en-US.msi " -ArgumentList "/q" -Wait

Updating the Exchange server to this latest CU is not different compared to earlier versions (except for the license agreement switch):

Setup.exe /PrepareSchema /IAcceptExchangeServerLicenseTerms_DiagnosticDataON
Setup.exe /PrepareAD /IAcceptExchangeServerLicenseTerms_DiagnosticDataON
Setup.exe /PrepareDomain /IAcceptExchangeServerLicenseTerms_DiagnosticDataON

Setup.EXE /Mode:Upgrade /IAcceptExchangeServerLicenseTerms_DiagnosticDataON

Note. There are no schema changes when upgrading from Exchange 2019 CU10 or Exchange 2016 CU21, but there are changes when upgrading from previous releases.

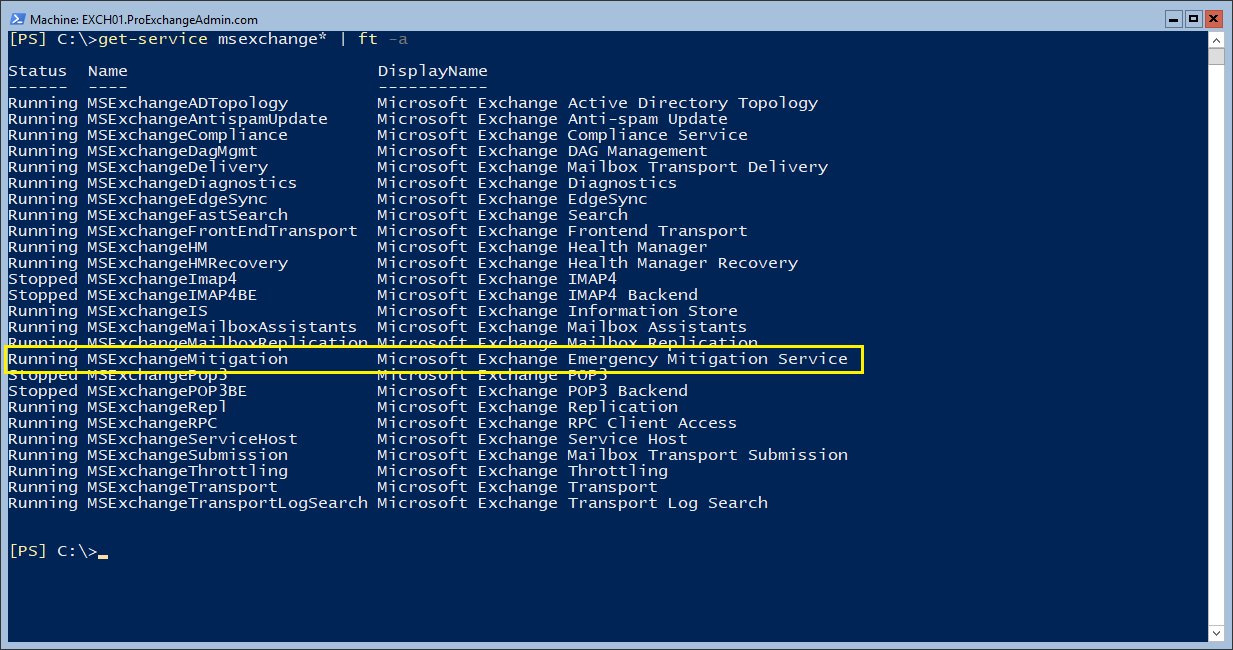

After installing the updates, you will see the new services when opening the services MMC snap-in:

Or when using the Get-Service MSExchange* PowerShell command:

To check the status in the Exchange organization, you can use the Get-OrganizationConfig | Select mitigations command:

To disable the mitigation service, execute the following command:

Set-OrganizationConfig -MitigationsEnabled:$False

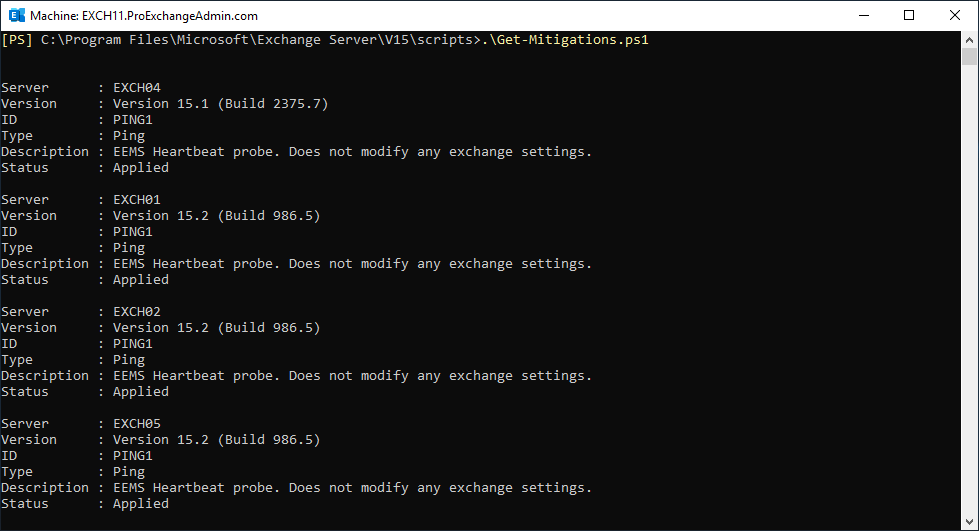

By default, only one mitigation is installed, this is the EEMS heartbeat probe. You can check the installed mitigations by navigating to the Exchange scripts directory and execute the Get-Mitigations.ps1 script:

As with any Cumulative Update, please test this CU in your lab to see if all works well for your environment. Also have a look at the telemetry configuration (is that allowed in your organization?) and at the automatic configuration changes made by the EEMS (I can hear CISO starting to complain).
