The Microsoft Exchange administrator has made a change…

Recently I had to upgrade an Exchange 2013 platform from CU2 to CU5, there were four Exchange 2013 Client Access servers and eight Exchange 2013 Mailbox servers (in a DAG).

During the upgrade of the Mailbox servers users were presented with the dreaded “The Microsoft Exchange administrator has made a change that requires you quit and restart Outlook.” dialog box.


This is expected behavior when moving from Outlook Anywhere to MapiHttp (since the Outlook profile needs to be updated for this change to take effect) but in this scenario MapiHttp was disabled. The message popped up totally unexpected. The bad thing is, it popped up every 10 minutes or so.

Microsoft has experienced similar issues when Mailboxes are moved from Exchange 2010 to Exchange 2013 as described in this knowledgebase article.

http://support.microsoft.com/kb/2934750 – Outlook 2013 cannot connect after an Exchange Server 2010 mailbox is moved to Exchange Server 2013

In my scenario Mailboxes were moved from Exchange 2010 to Exchange 2013, but this was somewhere between 9 and 12 months ago. And the platform has been pretty stable so far. In this knowledge Microsoft recommends repairing the Outlook profile or recreate the Outlook profile. Not a big deal for a few users, but when running a platform with multiple thousands Mailboxes this is not an option.

According to this TechNet article on RPC End Points this issue shouldn’t popup in Exchange 2013 at all: http://bit.ly/RPCEndPoint- Outlook, RPC end point and PF : The Microsoft Exchange Administrator has made a change that requires you quit and restart Outlook

In this article Public Folders are mentioned as well, but Public Folders were decommissioned between 9 and 12 months ago, in the same timeframe as Mailboxes being moved from Exchange 2010 to Exchange 2013.

Some more digging in the eventlog on the Mailbox server however revealed a warning with Event ID 2937 (MSExchange ADAccess) saying a cross reference to a Public Folder database points to the Deleted Objects container in Active Directory:


Log Name: Application

Source: MSExchange ADAccess

Date: 4-8-2014 18:58:25

Event ID: 2937

Task Category: Validation

Level: Warning

Keywords: Classic

User: N/A

Computer: MBX03.apps.local

Description:

Process Microsoft.Exchange.Store.Worker.exe (PID=8460). Object [CN=MDB06,CN=Databases,CN=Exchange Administrative Group (FYDIBOHF23SPDLT),CN=Administrative Groups,CN=apps,CN=Microsoft Exchange,CN=Services,CN=Configuration,DC=hostedapps,DC=local]. Property [PublicFolderDatabase] is set to value [apps.local/Configuration/Deleted Objects/PF01

DEL:0afd612b-7de0-4943-93d2-a5628ce9f61f], it is pointing to the Deleted Objects container in Active Directory. This property should be fixed as soon as possible.

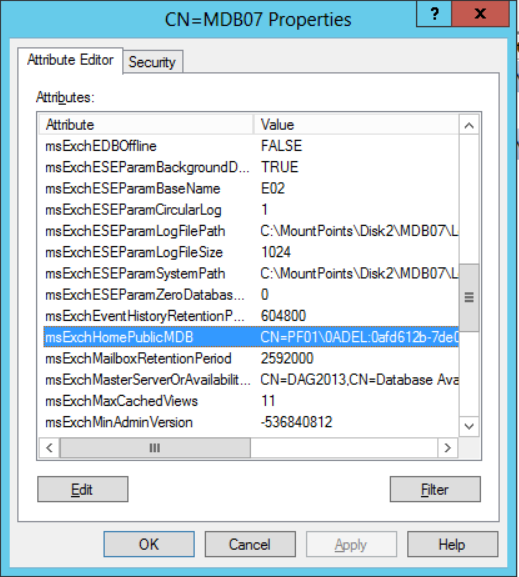

When checking the properties of a Mailbox database with ADSI Edit the MsExchHomePublicMDB property is populated with a Public Folder reference, but since the Public Folder database is decommissioned it points to the Deleted Objects container:


Use the Edit button to clear the reference from this property, restart the Information Store (or do a Database failover in the DAG) and the the popup never shows up again.

There are two questions here:

  • Why is this property populated with a reference to the Deleted Objects container? Most likely the Public Folder database wasn’t decommissioned properly, with ADSI Edit for example and not with the Exchange Management Console or Exchange Management Shell since these last two will also remove references from other objects.
  • Why has this issue been living here for about a year and does it only show up after an upgrade from Exchange 2013 CU2 to Exchange 2013 CU5? Unfortunately I cannot answer this question at this moment and I haven’t got a decent answer from Microsoft yet. The only thing I know at this point is that Microsoft supports only 2 versions of Exchange 2013 (CU5 and CU4=SP1) and that CU2 is not supported. Therefore, an upgrade from CU2 to CU5 is not supported either. This should have no effect on issues like described above, but I’m afraid this might indicate I will never get a decent answer on what’s going on here.

6 thoughts on “The Microsoft Exchange administrator has made a change…”

      1. Hi Jaap,
        I removed the line on the wrong database before, now I removed it at the mailbox of the exchange 2013 server and now it looks that your solution did solve my issue.
        Thank you very mucho!!!!!!!!!!!!!!!!!

        Like

  1. Thanks mate!
    We upgraded from E2k10 to 13 and this issue was there from the beginning, some users got rid of automatically and some did not. I just applied what you said and hopefully this is it. 🙂

    Like
