Exchange 2016 and Exchange 2019 SMTP Relay

The last couple of days I have been working with multiple customers on SMTP relay in Exchange 2016 during a migration from Exchange 2010 to Exchange 2016. The last time I did that was with Exchange 2010, almost 9 years ago https://jaapwesselius.com/2012/05/25/smtp-relay-in-exchange-2010/ and things have changed over the years. The changes in Exchange 2016 are carried forward in Exchange 2019…. Oh, and this is true for Exchange 2013 as well, but since Exchange 2013 is already out of support and none of my customers is using Exchange 2013 I’ll skip this….

Exchange 2010 has the Hub Transport service for SMTP, and this is using port 25 for communicating with other SMTP hosts. Exchange 2016 and Exchange 2019 have two services for SMTP transport:

  • Front-End Transport service (FETS) listening on port 25. This is where other SMTP hosts connect to. In the Exchange 2016 Admin Center the FETS Receive Connector is identified as Default Frontend <server> . In Exchange 2013, this service was running on the Client Access Server.
  • Hub Transport Service listening on port 2525. This is a back-end service used by FETS and other Exchange Hub Transport back-end services. Clients are not expected to use the Hub Transport service on port 2525. In the Exchange Admin Center this Receive Connector is identified as Default <server> . In Exchange 2013, this service was running on the Mailbox server.

These connectors are shown in the following screenshot. The Default Frontend Receive Connector (on port 25) is selected, the red arrow points to the Hub Transport Receive Connector on port 2525.

Note. The Client Frontend Receive Connector in the screenshot is listening on port 587 and is used for authenticated SMTP clients like Mozilla Thunderbird.

SMTP Relay in Exchange 2016 and 2019

The Default Frontend Receive Connector allows all SMTP clients to connect to it and drop email messages for local delivery. You don’t want to configure this connector to relay SMTP message to external domains, this is known as an ‘open relay’ and this is the number one reason to be put on every blacklist available on the Internet. You can do this and restrict access based on IP addresses, but I strongly recommend against changing the default connectors. Leave the inbound SMTP traffic end up on the Default Frontend Receive Connector and create a dedicated connector for SMTP relay traffic.

There are two ways to create such a relay connector:

  • Create a dedicated receive connector (on Frontend Transport, not on Transport Service), restrict by IP address and add the Ms-Exch-SMTP-Accept-Any-Recipient permission on the NT AUTHORITY\ANONYMOUS LOGON security principal. This is what I have shown in the blog mentioned earlier, and this is only possible using Exchange PowerShell. Sending hosts are considered anonymous, and anti-spam and message size limits are applied.
  • Create a dedicated receive connector (again on the Frontend Transport), restrict by IP address, and add the Exchange Servers and Externally Secured authentication mechanism to the connector. In this scenario, sending hosts are considered as authenticated senders, and email messages bypass anti-spam and message size limits. And it’s easy to configure using the Exchange Admin Console.

Since the first option is already documented, I will continue with the second option. Personally, I like to do this with PowerShell and the command to create such a connector and configure it are like these:

[PS] C:\>New-ReceiveConnector -Name "SMTP Relay EXCH01"
-Server EXCH01 -TransportRole FrontendTransport -Custom
-Bindings -RemoteIpRanges

Identity                 Bindings     Enabled
--------                 --------     -------
EXCH01\SMTP Relay EXCH01 {} True

[PS] C:\>Set-ReceiveConnector "EXCH01\SMTP Relay EXCH01"
-AuthMechanism ExternalAuthoritative
-PermissionGroups ExchangeServers

[PS] C:\>

When you check the connector using the Exchange Admin Center, you can see that the authentication mechanism is set correctly as shown in the following screenshot:

It is also possible to create a new connector using the Exchange Admin Center. In the EAC, navigate to mail flow and select the receive connectors tab and click the + icon. Follow the wizard, give the new connector a proper name, select Frontend Transport and Custom, and restrict by IP address as shown in the following screenshots:

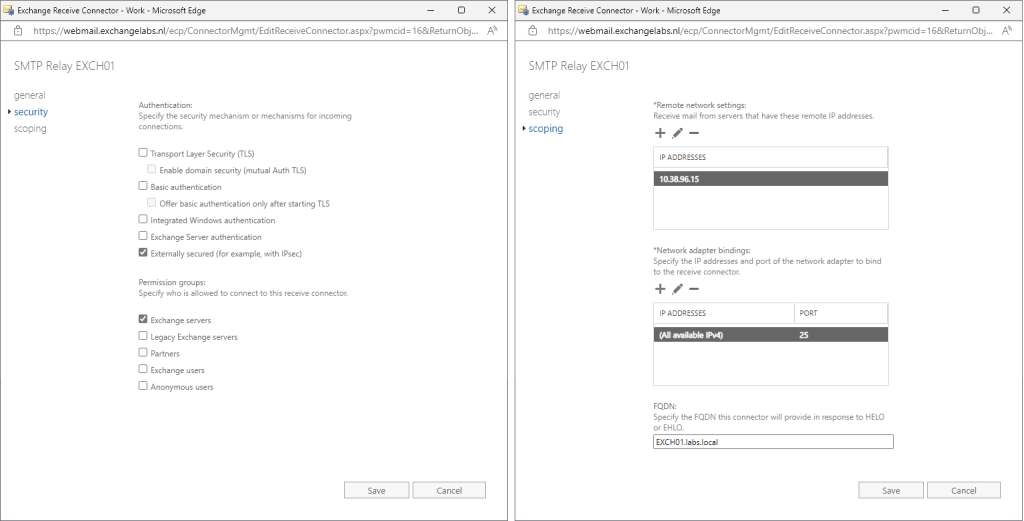

When created, open the new receive connector, select security and configure the authentication mechanmism to Externally secured and Exchange servers as shown in a previous screenshot.

It is now possible to relay SMTP messages from the server with IP address Using Telnet on port 25, you will see something like this:

When trying to relay from another server (which is not listed in the Remote Network Settings) it will fail with the 550 5.7.54 SMTP; Unable to relay recipient in non-accepted domain error as shown in the following screenshot:


So in short, do not configure the default receive connector in such a way that it will relay messages outside of the Exchange server. When you need to use SMTP relay, create a dedicated connector.

The first and most secure option is to create a new receive connector, restrict by IP address and configure the Ms-Exch-SMTP-Accept-Any-Recipient permission. Anti-spam and message size limits are applied, but it can only be configured using PowerShell (and thus more complex).

The second on is to create a new receive connector, restrict by IP address and configure the authentication mechanisms. Easier to configure (using EAC) but less secure: anti-spam and message limits are not applied.

It is up to you which one to use.

Exchange 2010 hybrid, SMTP, SSL Certificates and Subject Alternative Names

On every Exchange server you need SSL certificates for authentication, validation and encryption purposes. For SMTP you can use the self-signed certificate. Exchange 2010 uses opportunistic TLS, so the self-signed certificate will do in this scenario. If you need to configure domain security (mutual TLS) on Exchange, you need a proper 3rd party SSL certificate for this.

SMTP communication between Office 365 and Exchange in a hybrid scenario is an example of mutual TLS or domain security. A proper 3rd party SSL certificate is needed on your Exchange server.

I was always under the impression that mutual TLS can only use the Common Name of the certificate, which in my scenario is CN=webmail.inframan.nl. After a previous blogpost there was an interesting discussion (see the comments of this particular blogpost) about this, so now it’s time to do some testing.

Originally I had a Digicert SSL certificate with Common Name CN=webmail.inframan.nl, and a Subject Alternative Name entry autodiscover.webmail.com. During the HCW I entered webmail.inframan.nl and selected the proper certificate.

It was time to renew my SSL certificate, so I added an additional SAN entry o365mail.inframan.nl.


Continue reading Exchange 2010 hybrid, SMTP, SSL Certificates and Subject Alternative Names

Azure AD Connect Unable to update this object

In earlier blog post I explained how to create user account on-premises and accompanying Mailboxes in Office 365. This is possible with or without an Exchange server on-premises. The latter works, but it’s not supported.

There are also scenarios where you have cloud identities in Office 365 that you want to connect to user accounts in an on-premises Active Directory, so basically converting the cloud identity to a synced identity. This is a common scenario for example when moving from one tenant in Office 365 to another tenant, of maybe when moving from Groupwise or Notes to Office 365.

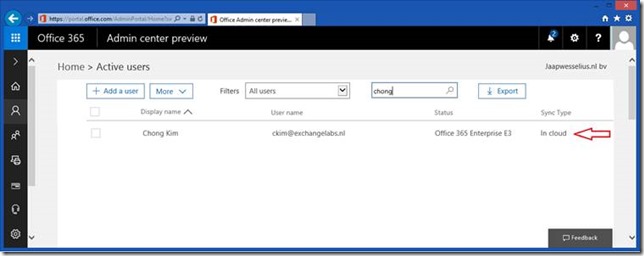

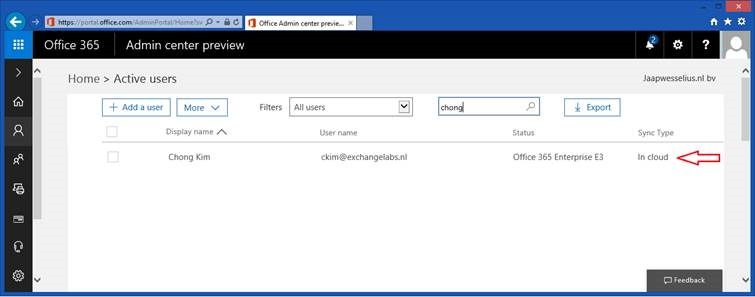

Suppose we have a cloud identity in Office 365 for a user named Chong Kim, he has an E3 license, a username ckim@exchangelabs.nl and this is also his primary SMTP address.

clip_image002 Continue reading Azure AD Connect Unable to update this object

Change SMTP mail flow in hybrid scenario

After building a hybrid Exchange environment as outlined in a couple of previous blog posts we have an Exchange 2013/2016 environment where some Mailboxes exist on-premises and some Mailboxes exist in Exchange Online. Autodiscover is still pointing to the on-premises environment, and so are the MX records. Inbound SMTP mail flow from the Internet is still accessing the on-premises Exchange 2016 Edge Transport servers before being delivered to the intended recipients.

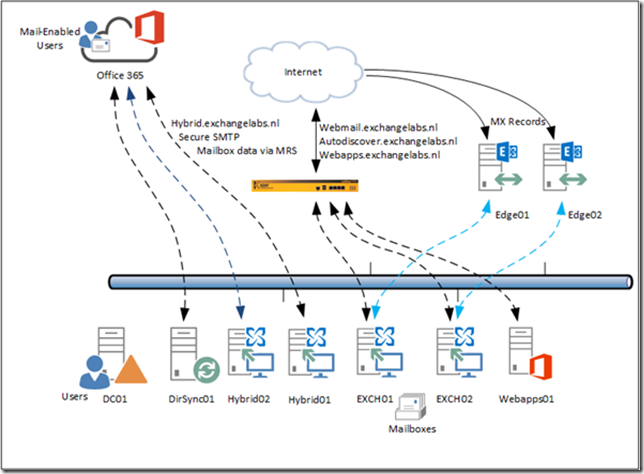

Figure 1. The Exchange hybrid environment with Mailboxes on-premises and in Exchange online.

Continue reading Change SMTP mail flow in hybrid scenario

Upgrade Hybrid Server to Exchange 2016

I’m running a coexistence scenario with Exchange 2013 and Exchange 2016 without too many issues. My hybrid server is running on Exchange 2013 from the beginning, and it is time to upgrade this server to Exchange 2016.

If you have configured your Exchange environment correctly the hybrid server is nothing special. In my environment the hybrid server is just used for sending SMTP messages between Exchange Online and Exchange on-premises, and it is used for migrating Mailboxes back and forth.

Upgrading the existing Exchange 2013 hybrid server to Exchange 2016 is actually just a matter of installing a new Exchange 2016 Mailbox server, configure it correctly like the old Exchange 2013 hybrid server and rerun the Hybrid Configuration Wizard application.


Figure 1. The new hybrid server (hybrid02) will be installed next to the old hybrid server (hybrid01)

Continue reading Upgrade Hybrid Server to Exchange 2016
