Tag Archives: SPF

Exchange

TrendMicro Hosted Email Security: SPF DKIM and DMARC Part I

Leave a comment

A couple of years ago I have been working with the TrendMicro Hosted Email Security (HES) solution and I was very satisfied with it. With the upcoming SPF, DKIM and DMARC awareness I was looking for online solutions that offer this kind of security measures and I found that HES now offers these solutions as well.

I have a hybrid Exchange environment with multi-role Exchange 2010 servers, Exchange 2010 Edge Transport servers and a hybrid configuration. There’s no dedicated Exchange 2016 server for this, the hybrid configuration just uses the existing Exchange 2010 servers. And this works well. There’s an additional namespace o365mail.inframan.nl, this is used solely for SMTP communication between Exchange Online and the on-premises Exchange 2010 servers (without the use of the Edge Transport servers). The configuration looks like this:


This a hybrid configuration with a centralized mailflow. All email is sent and received through the on-premises Exchange environment, including email from and to Office 365. So, email sent to the internet by users in Office 365 are sent first to the Exchange 2010 servers, and then via the Edge Transport servers to the Internet. This way you have full control over your Internet mail flow.

The Edge Transport servers don’t do a great job when it comes to message hygiene. You can configure Realtime Block Lists (RBL) like Spamhaus, configure content filtering using word lists and attachment filtering, but still (a lot of) spam ends-up in the user’s mailboxes. Therefore 3rd party solutions like Cisco Email Security Appliance (ESA, formerly known as IronPort) are used in front of on-premises Exchange solutions

Continue reading TrendMicro Hosted Email Security: SPF DKIM and DMARC Part I →

Exchange

SenderID, SPF, DKIM and DMARC in Exchange 2016 – Part III

4 Comments

In the previous two blog posts I have discussed SPF and DKIM as a way of validating the authenticity of email messages. SPF is using an SPF record in public DNS where all legitimate outbound SMTP servers for a domain are listed. A receiving SMTP server can check this DNS record to make sure the sending mail server is allowed to send email messages on behalf of the user or his organization.

DKIM is about signing and verifying header information in email messages. A sending mail server can digitally sign messages, using a private key that’s only available to the sending mail server. The receiving mail server checks the public key in DNS to verify the signed information in the email message. Since the private key is only available to the sending organization’s mail servers, the receiving mail server knows that it’s a legitimate mail server, and thus a legitimate email message.

As a reminder, my test environment is configured as follows:


There’s an Exchange 2016 CU2 Mailbox server hosting several Mailboxes, and there’s an Exchange 2016 CU2 Edge Transport server. Using Edge Synchronization all inbound and outbound SMTP traffic is handled by the Edge Transport server.

In the previous two blog posts an SPF record was created and implemented, and DKIM including a DKIM signing module on the Edge Transport server was implemented and functioning correctly.

This last blog in a series of three discusses DMARC, which is built on top of SPF and DKIM. Continue reading SenderID, SPF, DKIM and DMARC in Exchange 2016 – Part III →

Exchange

SenderID, SPF, DKIM and DMARC in Exchange 2016 – Part II

2 Comments

In the previous blogpost I have been discussing how SPF works and how it uses public DNS to validate the authenticity of the sending SMTP servers. When SPF is implemented correctly a receiving mail server can validate is the sending mail server is allowed to send email on behalf of the sender or his organization.

In this blogpost I will discuss DKIM signing as an additional (and more complicated, and more difficult to spoof) step in email validation.

As a quick reminder, here’s how my lab environment looks like:


There’s an Exchange 2016 CU2 Mailbox server hosting several Mailboxes, and there’s an Exchange 2016 CU2 Edge Transport server. An Edge synchronization will make sure that all inbound and outbound SMTP traffic is handled by the Edge Transport server.

In my previous blogpost an SPF record was created and implemented with the following value:

v=spf1 a:smtphost.exchangelabs.nl ~all

so receiving mail servers can validate that my Edge Transport server is allowed to send email on my behalf, and when mail is originating from another mail server it might well be a spoofed message.

But for now let’s continue with DKIM. Continue reading SenderID, SPF, DKIM and DMARC in Exchange 2016 – Part II →

Exchange

SenderID, SPF, DKIM and DMARC in Exchange 2016 – Part I

4 Comments

SenderID has been used in Exchange as a means for anti-spam for quite some time, as far as I can remember this was first used in Exchange 2010. Related to SenderID is SPF (Sender Policy Framework). SPF looks like SenderID functionality, but it differs in the way how it checks email messages.

Both use public DNS records with TXT records where information is stored regarding the sending SMTP server, and this information is used by the receiving (Exchange) server to validate if the sending server is allowed to send email on behalf of the sender.

Getting more popular for fighting spam are DKIM (DomainKeys Identified Mail) and DMARC (Domain-based Message Authentication, Reporting & Conformance). Just like SenderID and SPF, these solutions use public DNS for additional information as well, but since encryption is used most Exchange admin have some doubts about the complexity of DKIM and DMARC.

In the upcoming blogpost I’ll discuss SPF, DKIM and DMARC as implemented in my lab environment which looks like this:


There’s an Exchange 2016 CU2 Mailbox server hosting several Mailboxes. The server is accessible via webmail.exchangelabs.nl and autodiscover.exchangelabs.nl (same IP address, behind a Kemp LM3600 load balancer) and configured with a Digicert UC certificate.

In addition to this there’s an Exchange 2016 CU2 Edge Transport server with FQDN smtphost.exchangelabs.nl. Besides the regular A and MX record, the IP address is also configured in Reverse DNS. The Edge Transport server is also behind a Kemp LM3600 load balancer, and it has a Digicert SSL Certificate with the same domain name. There’s an Edge Synchronization configured between the Mailbox server and the Edge Transport server, and all inbound and outbound mail is handled by the Edge Transport server. Continue reading SenderID, SPF, DKIM and DMARC in Exchange 2016 – Part I →

Exchange, Office365

Change SMTP mail flow in hybrid scenario

5 Comments

After building a hybrid Exchange environment as outlined in a couple of previous blog posts we have an Exchange 2013/2016 environment where some Mailboxes exist on-premises and some Mailboxes exist in Exchange Online. Autodiscover is still pointing to the on-premises environment, and so are the MX records. Inbound SMTP mail flow from the Internet is still accessing the on-premises Exchange 2016 Edge Transport servers before being delivered to the intended recipients.

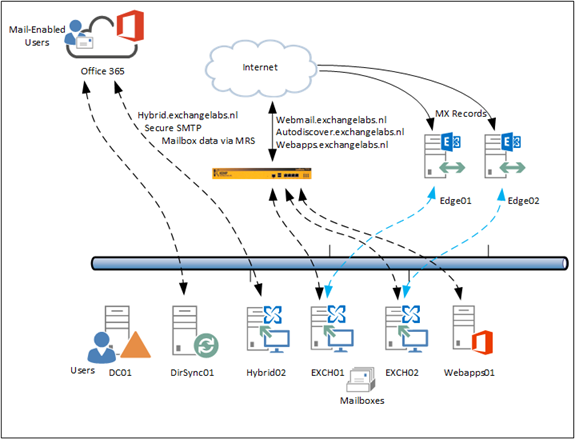

Figure 1. The Exchange hybrid environment with Mailboxes on-premises and in Exchange online.

Continue reading Change SMTP mail flow in hybrid scenario →
