Installing Exchange 2013 – Part I

Exchange server 2013 consists of two server roles, the Mailbox Server (sometimes referred to as the back-end) and the Client Access Server (sometimes referred to as the front-end). All clients connect to the CAS Server and the CAS Server proxies the request to the appropriate mailbox server.

It is possible to install the server roles on dedicated servers, multiple Exchange 2013 CAS servers with a hardware load balancer and multiple Exchange 2013 Mailbox servers with a Database Availability Group. This is the preferred way for large companies with lots of mailboxes, lots of servers and maybe multiple (global) datacenter. To be honest, this is where Exchange 2013 is designed for. But it is also possible for smaller organizations to install just two Exchange 2013 server with both roles on it, a DAG for mailbox resiliency and a hardware of software load balancers for the protocol resiliency.

Continue reading Installing Exchange 2013 – Part I

Unattended Setup Exchange 2010

Installing prerequisite software

Before installing the actual Exchange Server the prerequisite software needs to be installed as well. Microsoft has a couple of XML files that can be used with the command-line version of Server Manager, ServerManagerCmd.exe

These XML files can be found in the directory D:\Setup\ServerRoles\Common (where “D” is the installation source, i.e. your DVD or network share) and are named Exchange-Serverrole.XML:


You can start installing the prerequisite by opening a command prompt and execute the following command:

ServerManagerCmd.exe –ip Exchange-Cas.XML

This will install the prerequisite software for the Exchange 2010 Client Access Server. Although the server not always requests to I personally always recommend rebooting the server after installing the prerequisite software.

Preparing Active Directory

To prepare Active Directory for Exchange Server 2010:

setup.com /PrepareExchangeLegacyPermissions

(this step only needs to be performed when upgrading from an earlier version of Exchange)

setup.com /PrepareSchema
setup.com /PrepareAD /OrganizationName:<< name>>

(the /OrganizationName switch can be omitted when upgrading from an earlier version of Exchange)

setup.com /PrepareDomain

Install the Exchange Servers:

To install Exchange 2010 servers from the command line using the setup.com application a number of switches are available:

/mode, can be install, uninstall or upgrade

/role, can be (a combination of) CA, HT, MB, UM, MT (MT = Management Tools)

/UpdatesDir – location on disk where the setup can fine update (i.e. Update Rollup fixes) that will be included when installing Exchange Servers. This does not work when upgrading servers (unfortunately)

/LegacyRoutingServer – The Exchange 2003 SMTP server the Hub Transport Server is using to create a Legacy Routing Group Connector (only used for the 1st Hub Transport Server in an existing Exchange 2003 environment)

/LanguagePack – location on disk where the setup application can find the Language Pack files. Of course these need to be downloaded first

/ExternalCASServerDomain – The external URL the Client Access Server is using for clients accessing the server from the Internet (CAS Server only)

/EnableLecayOutlook – Creates a Public Folder database needed for Outlook 2003 clients (Mailbox Server only)

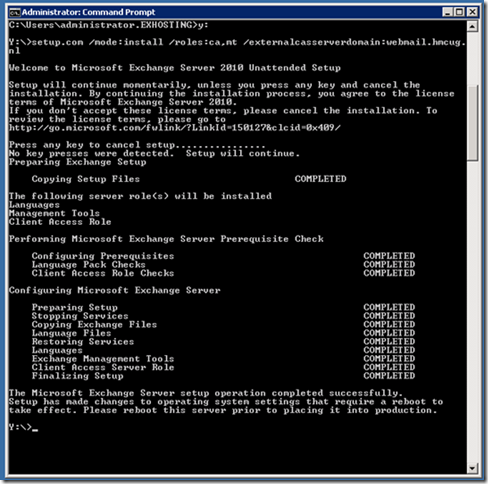

To install a combined CAS and HUB server:

setup.com /mode:install /role:CA,HT /UpdatesDir:\\InstallShare\ExchangeUpdates /LanguagePack:\\InstallShare\ExchangeLanguagePack\LanguagePackBundle.exe /ExternalCASServerDomain:webmail.contoso.com

To install a Hub Server and connect it to Exchange 2003:

setup.com /mode:install /role:HT /UpdatesDir:\\InstallShare\ExchangeUpdates /LanguagePack:\\InstallShare\ExchangeLanguagePack\LanguagePackBundle.exe /LegacyRoutingServer:2003SMTP.contoso.com

To install a Mailbox Server:

setup.com /mode:install /role:MB /UpdatesDir:\\ InstallShare \ExchangeUpdates /LanguagePack:\\ InstallShare \ExchangeLanguagePack\LanguagePackBundle.exe /EnableLegacyOutlook


Use an answer file

It is also possible to use an answer file for the unattended setup with the /Answerfile:c:\answerfile.txt option. you can use the following options in the answer file:

EnableLegacyOutlook

LegacyRoutingServer

ServerAdmin

ForeignForestFQDN

OrganizationName

DoNotStartTransport

UpdatesDir

EnableErrorReporting

NoSelfSignedCertificates

AdamLdapPort

AdamSslPort.

More information can be found on Microsoft TechNet: http://technet.microsoft.com/en-us/library/aa997281.aspx
