I hate this…. And most likely you too otherwise you didn’t end up here
When logged on to an Exchange server, ready for starting the Hybrid Configuration Wizard, you try to logon to Exchange Online you end up with a warning (or ‘error’) message:

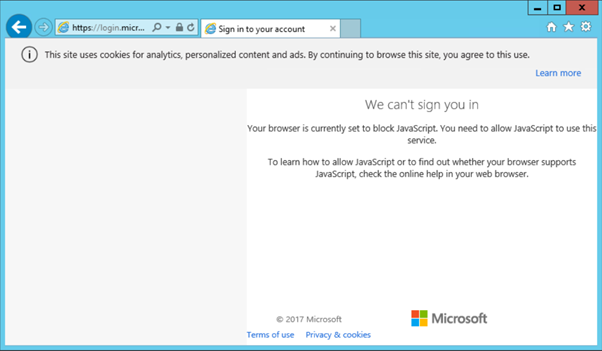

We can’t sign you in
Like the screenshot below:

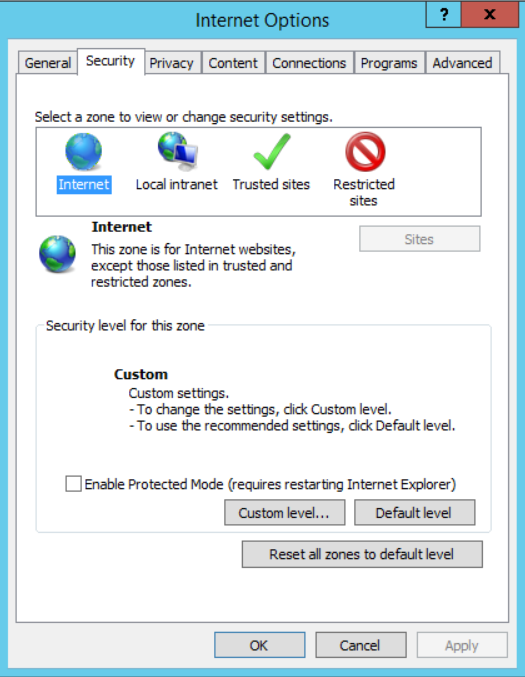

Now scroll all the way down (or press page down 12 times ) and enable Active Scripting:
You will get a warning message “Are you sure you want to change the settings for this zone”, click Yes and click OK.
Restart your Internet Explorer browser and you can login on Exchange Online and continue with the Hybrid Configuration Wizard (or whatever you were trying to achieve).
When configuring an Exchange 2010 hybrid environment a Receive Connector is created on the Exchange 2010 server. This Receive Connector is configured with the FQDN entered in the Hybrid Configuration Wizard (see previous blog post on Exchange 2010 Hybrid) and the source IP addresses of the Microsoft Exchange Online servers. If one of these servers access the Exchange 2010 environment, they end up on the Office 365 Receive Connector (based on the IP address) and the correct SSL certificate is returned. This way mutual TLS is established between Exchange 2010 on-premises and Exchange Online.
It sometimes happens that the wrong certificate is used for SMTP communication between Exchange on-premises and Exchange Online, thus resulting in SMTP mail flow failure between the two.
You can check this in the Exchange Admin Center (EAC) in Exchange Online. Logon to the EAC in Exchange Online, select Mail Flow and click the Connectors tab. You’ll see two connectors. One connector for mail from Exchange 2010 to Exchange Online, and one connector for mail from Exchange Online to Exchange 2010.
Continue reading Exchange 2010 Hybrid cannot establish Mutual TLS wrong certificate is used
In my previous blogpost, I’ve discussed the prerequisites for moving from Exchange 2010 to Office 365 when using Directory Synchronization (using Azure AD Connect). In this blogpost I’ll discuss how to create an Exchange 2010 hybrid environment.
Exchange 2010 Hybrid
Now that Directory Synchronization is in place using Azure AD Connect we can focus on connecting the on-premises Exchange environment to Exchange Online, this a called an Exchange Hybrid Configuration.
Hybrid configurations can consist of Exchange 2010, Exchange 2013 or Exchange 2016 or a combination of versions, so it is possible to have an Exchange 2010 and Exchange 2013 coexistence scenario on-premises, and connect this to Exchange Online. However, when using multiple versions of Exchange in a Hybrid configuration there’s always add complexity, and when configured incorrectly you can get unexpected results. Therefore, I typically recommend using only one version, so if you’re running Exchange 2010 on-premises, there’s no need to add an Exchange 2013 or Exchange 2016 server to your configuration, just as a ‘hybrid server’. Despite what other people tell you, there’s no need to add a newer version, and Exchange 2010 Hybrid is fully supported by Microsoft. Better is to create an Exchange 2010 hybrid environment, and when the mailboxes (or most the mailboxes) are moved to Office 365 upgrade your existing Exchange 2010 environment to Exchange 2016. But that might be an interesting topic for a future blog post .
Basically, we will create the following configuration (again, there is no Exchange 2016 server installed in the existing organization):
Figure 14. Exchange 2010 hybrid configuration.
Continue reading Moving from Exchange 2010 to Office 365 Part II

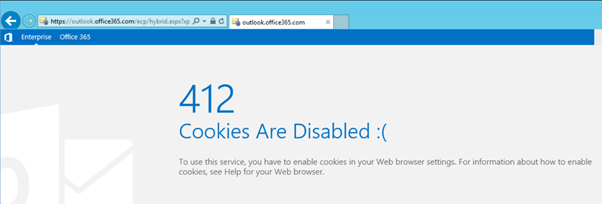

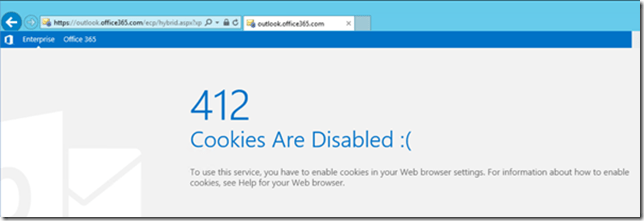

This blogpost is more a note to self, but sigh, I hate it when it does this…. show the 412 Cookies are Disabled error message when trying to open the Exchange Admin Center (EAC) in Exchange Online:
I’m not sure if this issue shows up every time, but at least it shows up when you want to configure an Exchange Hybrid Configuration and you select Hybrid in the On-Premises EAC and select Sign In to Office 365.

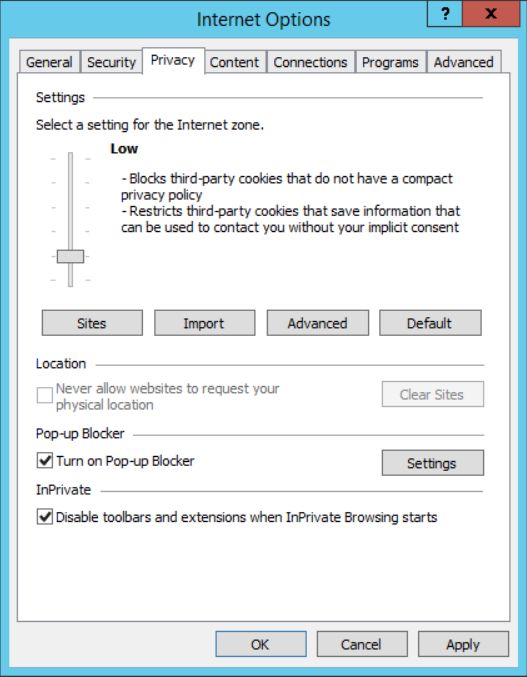

To solve this, select the Tools menu in Internet Explorer, select Internet Options and click the Privacy tab.
Lower the slider just one click to Low and click Apply or OK.
Now when you refresh the page in Internet Explorer it should continue with the Hybrid Configuration page:
In my previous blog post I explained about an Exchange 2013 hybrid configuration, and what the prerequisites are for such a configuration and how to implement and configure one (or more) Exchange 2013 Hybrid servers.
In this blog post we’ll continue with the Hybrid Configuration and we will run the Hybrid Configuration Wizard (HCW) to actually create the Exchange 2013 Hybrid configuration.
Note. For simplicity I assume your Exchange 2013 is fully operational without any (certificate) issues on the Internet, which means you have configured all your Virtual Directories, Outlook Anywhere and Autodiscover. Everything must be working correctly to prevent any issues during configuration, possibly resulting in a misconfigured and not working hybrid configuration.
Run the Hybrid Configuration Wizard
Configuring Exchange 2013 is relatively easy and can be started from the Exchange Admin Center (EAC). The wizard that’s used here is known as the Hybrid Configuration Wizard (HCW) and in my experience a very stable (although there have been some glitches with the HCW in earlier CU’s of Exchange 2013) and efficient wizard, providing you have met all prerequisites of course.
Login to the Exchange 2013 Hybrid server and start the Exchange Admin Center locally. The reason for doing this locally on the server is that during the wizard some additional software needs to be installed for the OAuth part of the Hybrid configuration.
In the Exchange Admin Center in the navigation pane select hybrid. In the hybrid setup window click the enable button to initially enable the hybrid mode in your organization. The option My Office 365 organzation is hosted by 21Vianet should be left unchecked. Office 365 in China is hosted by 21Vianet so this option does not apply to us (unless you are in China and your organization is hosted by 21Vianet of course).
Continue reading Exchange 2013 Hybrid Configuration Wizard (Part II)
